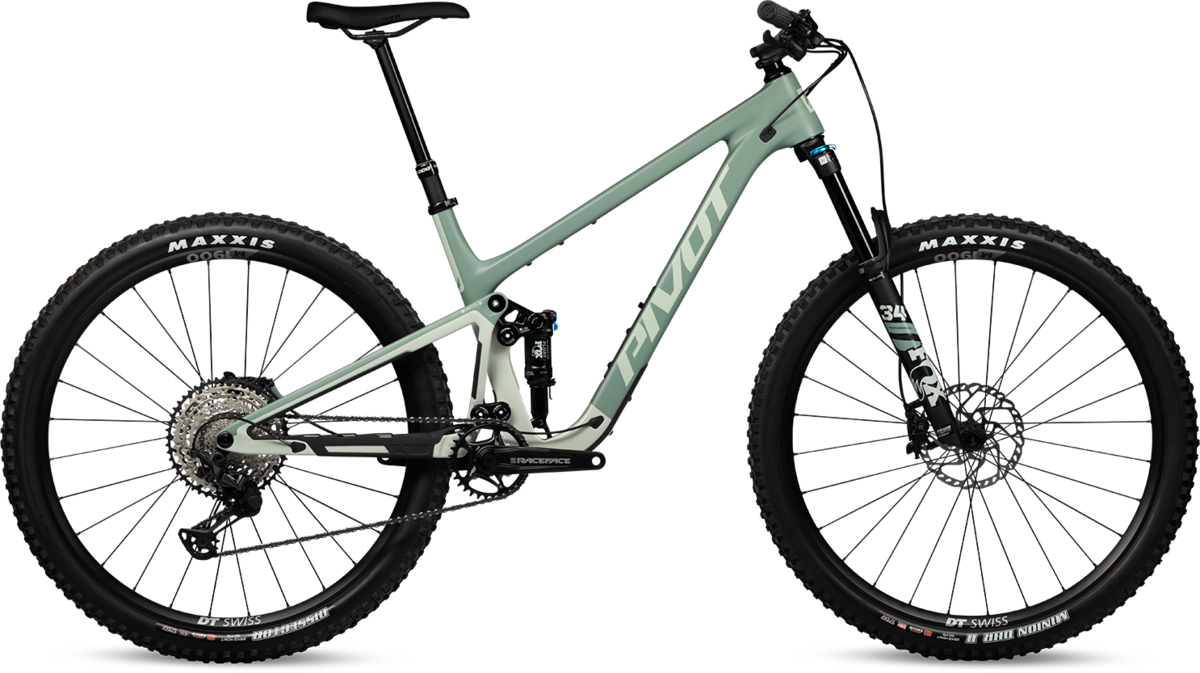

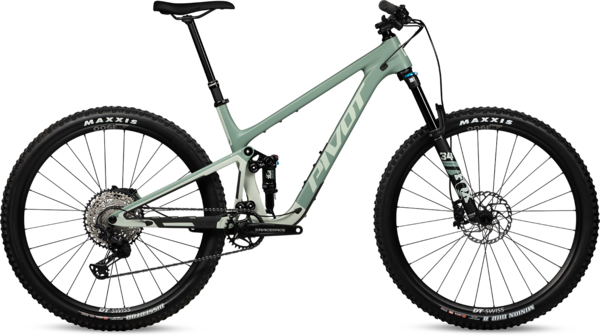

Pivot Cycles Trailcat SL Ride SLX/XT - Alloy Wheels
Details
Super light, razor-sharp and unapologetically fast, the all-new Trailcat SL earns its title as the ultimate trail companion by amplifying every aspect of your ride. Its lightweight frame and finely tuned dw-link suspension platform make climbing effortless, delivering smooth, efficient power. Agile enough to navigate tight switchbacks and composed enough to handle rough, fast descents, the Trailcat SL is as versatile as it is fun. From spirited after-work loops to all-day adventures, it combines efficiency, precision and stability in a way that inspires confidence on any terrain.
The Trailcat SL is designed to keep your focus where it belongs: the ride. Pivot’s innovative Toolshed™ downtube storage system features a precision-engineered door that stays silent, even on the roughest trails. Inside, the durable Toolshed™ bags keep your essentials secure, eliminating the need for bulky packs while maintaining a sleek, streamlined profile. For added versatility, the Pivot Tool Dock system offers additional on-bike storage options, ensuring you’re always prepared without sacrificing style or performance.
Product Details:
- Ultra-Light Hollow Core Carbon Frame
- Toolshed™ In-Frame Storage
- New Dual Cable Port Design
- Large Water Bottle Clearance on all sizes
- Fits riders between 4’10” and 6’5”+ with X-Small to X-Large size offerings
- Flip Chip for on-trail geometry customization
- MX Wheel Compatible
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
- Hassle-free full internal routing with Pivot cable port system
- UDH Derailleur Hanger
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Geometry Position | Low / High | Low / High | Low / High | Low / High | Low / High |
| Seat Tube Length (C-T) (cm) | 34.3 | 36.8 | 39.4 | 43.2 | 47 |
| Top Tube Length (cm) | 56.9 / 56.7 | 59.6 / 59.5 | 62.9 / 62.7 | 64.6 / 64.5 | 66 / 65.8 |
| Head Tube Length (cm) | 8.5 | 9.5 | 10.7 | 11.2 | 12.5 |
| Head Tube Angle | 65.8° / 66.3° | 65.8° / 66.3° | 65.8° / 66.3° | 65.8° / 66.3° | 65.8° / 66.3° |
| Seat Tube Angle | 76° / 76.4° | 76° / 76.4° | 76° / 76.4° | 76° / 76.4° | 76° / 76.4° |
| Chainstay Length (cm) | 43.1 / 42.9 | 43.1 / 42.9 | 43.1 / 42.9 | 43.2 / 43 | 43.4 / 43.2 |
| Bottom Bracket Height (cm) | 33.8 / 34.4 | 33.8 / 34.4 | 33.8 / 34.5 | 33.8 / 34.5 | 33.8 / 34.5 |
| Bottom Bracket Drop (cm) | 3.6 / 3 | 3.6 / 3 | 3.6 / 3 | 3.6 / 3 | 3.6 / 3 |
| Standover (cm) | 65.3 / 65.7 | 67.4 / 67.8 | 67.8 / 68.2 | 69.2 / 69.6 | 70.7 / 71.2 |
| Wheelbase (cm) | 114.3 / 114.2 | 117.2 / 117.1 | 120.7 / 120.6 | 122.6 / 122.5 | 125.3 / 125.2 |
| Stack (cm) | 60.4 / 60.1 | 61.4 / 61 | 62.5 / 62.1 | 62.9 / 62.5 | 64.1 / 63.7 |
| Reach (cm) | 41 / 41.5 | 43.5 / 44 | 46.5 / 47 | 48 / 48.5 | 50 / 50.5 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| X-Small | 1,50 – 1,63 m | 4'11" – 5'4" |
| Small | 1,63 – 1,75 m | 5'4" – 5'9" |
| Medium | 1,73 – 1,80 m | 5'8" – 5'11" |
| Large | 1,78 – 1,88 m | 5'10" – 6'2" |
| X-Large | 1,88 m + | 6'1" + |
Specs
| Frame | Trailcat SL |
|---|---|
| Fork | Fox Performance 34 29", GRIP - 140mm |
| Rear Shock | Fox Performance Float |
| Wheels | DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29" 15x110 F/12x157 R |
| Tires |
Front: Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA Rear: Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA |
| Crankset | Race Face Ride 32t |
| Shifters | Shimano SLX M7100 ISPEC EV 12-Speed |
| Rear Derailleur | Shimano XT M8100 SGS 12-Speed |
| Cassette/Freewheel | Shimano SLX M7100 10-51t |
| Chain | Shimano CN-M7100 12-Speed |
| Brakes | Shimano SLX M7120 4-piston |
| Rotors | Shimano SLX 6-bolt - 180mm |
| Handlebars | Phoenix Race Low Rise Aluminum - 780mm (XS-LG), 800mm(XL) |
| Tape/Grips | Phoenix Factory Lock-On |
| Stem | Phoenix Team Enduro/Trail - 35mm(XS), 45mm(SM), 55mm(MD-XL) |
| Headset | Pivot Precision Sealed Cartridge |
| Seatpost | SDG Tellis 105-125mm (XS), SDG Tellis 130-150mm (SM), SDG Tellis 150-170mm (MD), E13 Vario 180mm-210mm (LG-XL) |
| Saddle | Phoenix WTB Volt Race (Medium Width) |
| Pedals | Sold Separately |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Green Meadow Mist / X-Small / 29-inch | 196338192200 | 00TCSL129ASXA--GMMXSDRPKN |
| Green Meadow Mist / Small / 29-inch | 196338192163 | 00TCSL129ASXA--GMMSMDRPKN |
| Green Meadow Mist / Medium / 29-inch | 196338192149 | 00TCSL129ASXA--GMMMDDRPKN |
| Green Meadow Mist / Large / 29-inch | 196338192125 | 00TCSL129ASXA--GMMLGDRPKN |
| Green Meadow Mist / X-Large / 29-inch | 196338192187 | 00TCSL129ASXA--GMMXLDRPKN |
| Dr Purple / X-Small / 29-inch | 196338192101 | 00TCSL129ASXA--DRPXSDRPKN |
| Dr Purple / Small / 29-inch | 196338192064 | 00TCSL129ASXA--DRPSMDRPKN |
| Dr Purple / Medium / 29-inch | 196338192040 | 00TCSL129ASXA--DRPMDDRPKN |
| Dr Purple / Large / 29-inch | 196338192026 | 00TCSL129ASXA--DRPLGDRPKN |
| Dr Purple / X-Large / 29-inch | 196338192088 | 00TCSL129ASXA--DRPXLDRPKN |
