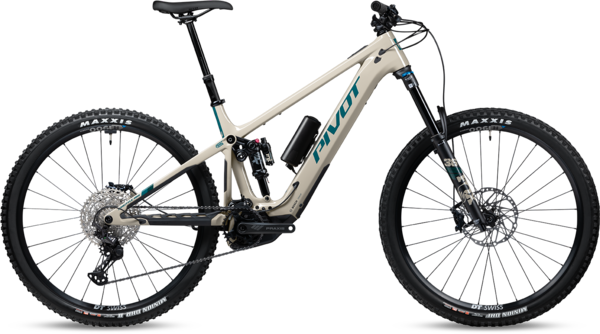

Pivot Cycles Shuttle AM Ride SLX/XT - Alloy Wheels w/ Range Extender

Pivot Cycles Shuttle AM Ride SLX/XT - Alloy Wheels w/ Range Extender
  • Color: Mojave Willow Green
  • Color: Blue Neptune
$8,499.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store.

Details

The Shuttle AM doesn’t shy away from touting itself as an all-mountain masterpiece that dominates the realm of e-mountain performance. This awe-inspiring e-bike strikes the perfect chord, delivering an unmatched blend of lightweight agility and long-travel prowess that hits the all-mountain sweet spot.

Product Details:

- Ultralight Hollow Core Carbon Frame
- Powerfully Smooth Bosch Performance Line CX Motor, CX Race Motor on Team Builds
- Long-range 750Wh Battery on Team and Pro Builds, 625Wh battery on Ride Builds
- Bosch 250wh PowerMore Range Extender Compatible
- Integrated Power and Mode Display
- Wheel Mounted Speed Sensor
- Wireless Bosch Remote
- 160mm Fox Factory and Performance 36 Forks
- Flip-Chip Upper Link Mount
- Mixed Wheel Compatible
- Pivot Dock Tool System Compatible
- Water Bottle Clearance on All Sizes
- Fox Factory Float X Shock with 148mm of Progressive Suspension Travel
- Injection Molded Rubberized Frame Protection
- Full Internal Routing with Pivot Cable Port System

Sizes:
SizeSmallMediumLargeX-Large
Geometry Position Low / High Low / High Low / High Low / High
Seat Tube Length (C-T) (cm) 37.8 39.9 43.2 47
Top Tube Length (cm) 59.9 / 59.8 63.1 / 63 64.9 / 64.7 67.1 / 67
Head Tube Length (cm) 11 12 13 14
Head Tube Angle 64.1° / 64.5° 64.1° / 64.5° 64.1° / 64.5° 64.1° / 64.5°
Seat Tube Angle 76.4° / 76.8° 76.4° / 76.8° 76.4° / 76.8° 76.4° / 76.8°
Chainstay Length (cm) 44.4 44.4 44.4 44.4
Bottom Bracket Height (cm) 34.5 / 35 34.5 / 35 34.5 / 35 34.5 / 35
Bottom Bracket Drop (cm) 2.9 / 2.4 2.9 / 2.4 2.9 / 2.4 2.9 / 2.4
Standover (cm) 71.5 / 72 71.5 / 72 71.5 / 72 71.5 / 72
Wheelbase (cm) 121.7 / 121.6 125.1 / 125 127 / 126.9 129.5 / 129.4
Stack (cm) 63.2 / 62.9 64.2 / 63.8 65.1 / 64.7 66 / 65.6
Reach (cm) 43.1 / 43.5 46.1 / 46.5 47.6 / 48 49.6 / 50
Sizes:
Frame SizeRider Height (in)
Small 5'2" – 5’7"
Medium 5'7" – 5'11"
Large 5'10" – 6'2'
X-Large 6'1" +

Specs

Frame Shuttle AM
Fork Fox Performance 36 29", 44mm offset, GRIP - 160mm
Rear Shock Fox Performance Float X
Wheels Newmen Performance, 30mm - 29" 15x110 F/12x157 R
Tires Front: Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Rear: Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Crankset Praxis Alloy eCranks E-MTB 34t - 160mm
Shifters Shimano SLX M7100 ISPEC EV 12-Speed
Rear Derailleur Shimano XT M8100 SGS 12-Speed
Cassette/Freewheel Shimano Deore M6100 10-51t
Chain Shimano CN-M6100 12 Speed
Brakes Shimano SLX M7120 4-piston
Rotors Shimano Deore CenterLock - 203mm
Handlebars Phoenix Race Low Rise Aluminum - 780mm (SM-MD), 800mm (LG-XL)
Tape/Grips Phoenix Factory Lock-On
Stem Phoenix Team Enduro/Trail - 45mm
Headset Pivot Precision Sealed Cartridge
Seatpost SDG Tellis 130-150mm (SM), 150-170mm (MD), 180-200mm (LG-XL)
Saddle Phoenix WTB Race High Tail Trail (SM), Phoenix WTB Race Volt Medium (MD), Pivot Pro E-Bike (LG-XL)
Pedals Sold Separately
Motor Bosch Performance CX / Powertube 625wh

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Blue Neptune / Small / 29-inch 196338211208 00SHTV629ASXA-RBNSSMDRPINSA1
Blue Neptune / Medium / 29-inch 196338211123 00SHTV629ASXA-RBNSMDDRPINSA1
Blue Neptune / Large / 29-inch 196338211185 00SHTV629ASXA-RBNSLGDRPINSA1
Blue Neptune / X-Large / 29-inch 196338210638 00SHTV629ASXA-RBNSXLDRPINSA1
Mojave Willow Green / Small / 29-inch 196338210805 00SHTV629ASXA-RMWGSMDRPINSA1
Mojave Willow Green / Medium / 29-inch 196338210737 00SHTV629ASXA-RMWGMDDRPINSA1 PIV37757266R
Mojave Willow Green / Large / 29-inch 196338210720 00SHTV629ASXA-RMWGLGDRPINSA1
Mojave Willow Green / X-Large / 29-inch 196338210645 00SHTV629ASXA-RMWGXLDRPINSA1
